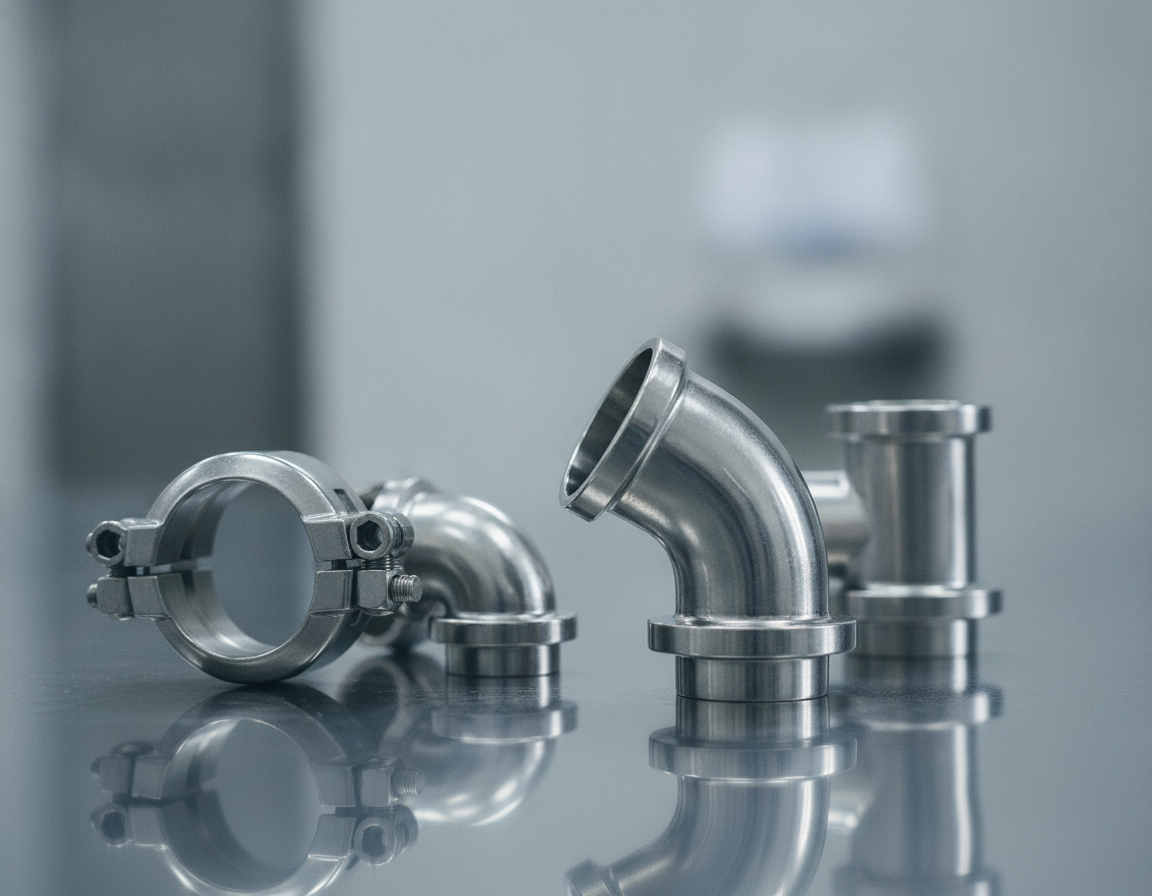

Across many industries, stainless steel sanitary pipe fittings are important for keeping process systems clean. These components, including ferrules, clamps, sanitary valves, and fittings, are built to keep fluid paths clean. They help minimize contamination risks and make cleaning easier.

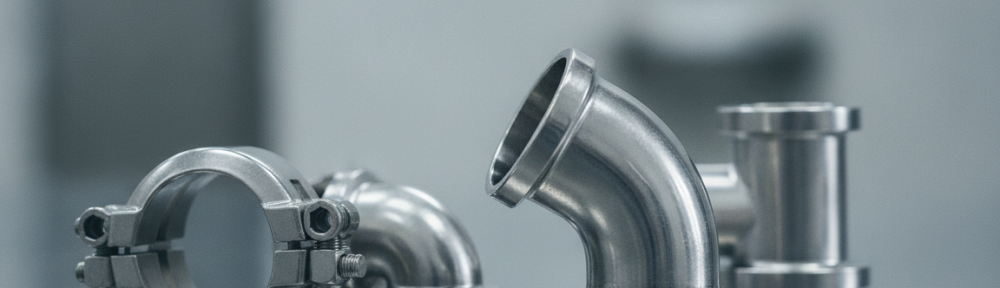

Tri Clover Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings influences product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are key factors. They affect the ease with which a system can be validated and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands such as CSI and distributors like Installation Parts Supply provide useful purchasing information. They include catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Cleanability and corrosion resistance are influenced by material grade and surface finish.
- Hygienic Fittings compatibility reduces downtime during maintenance and upgrades.
- Catalogs and reviews from CSI and Installation Parts Supply support dependable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Understanding Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems rely on components designed for safety and efficiency. A sanitary fitting should provide smooth surfaces, tight seals, and accessible cleaning points. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, often called hygienic fittings, are specified to create crevice-free connections. This minimizes bacterial growth, maintaining product purity during transfer and processing. Their design allows quick cleaning and minimizes cross-contamination risks.
Key Industries Using Hygienic Fittings
Food processors use hygienic fittings to maintain safety standards and reduce spoilage risk. Beverage manufacturers use them to safeguard flavor and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities depend on precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L handle chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components limit bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces make easier the assembly and maintenance of robust hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. The right material, product type, and surface finish are important to reducing contamination risk and making cleaning easier. This section explains common stainless grades, component families, and surface finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel provides corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides higher resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design simplifies procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the basic connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings support smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings limits downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness influences how residues adhere. A 32RA internal finish is a common spec that matches cost and cleanability for most food and beverage applications.
Electropolishing further smooths the metal and enhances passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Sanitary Component | Common Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 or 316L | 32RA ID and OD finish | Pipe-end transitions and welded joints |
| Two-piece clamps Tri-Clamp | 316L commonly preferred | 32RA or electropolished | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 / 316L | 32RA, electropolished optional | Permanent connections, elbows, and tees |
| Sanitary Hose Fittings | 316L often specified | Electropolished product-contact surfaces | Flexible process lines and transfers |
| Sanitary valves and process fittings | 316L for wetted parts | Smooth polished flow paths | Cleanable flow control in process lines |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings align with strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A dictate ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is selected when ordering.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules deliver superior resistance to chlorides in harsh environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This supports the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that show detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections And Compatibility With CSI Sanitary Fittings
Sanitary connections are essential for linking pipes, valves, and equipment in clean systems. The right joint type is essential for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are multiple connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own strengths and limitations regarding assembly speed, cleanability, and leak risk.
Clamp connections are known for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are appropriate for low-risk applications where product contact is not a concern. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility is essential when mixing components. CSI Sanitary Fittings and Csi Fittings follow common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When evaluating suppliers, compare lead times, documented quality, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Connection Type | Ideal Use | Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Lines requiring fast access for cleaning | High cleanability with a removable gasketed seal | High when size and sealing face match; CSI fittings fit most brands |
| Butt-Weld / Socket-Weld | Permanent process runs requiring smooth internal bores | Excellent after correct weld finishing and polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded sanitary-style connection | Low-risk applications away from product contact | Moderate because threads may trap residue | Use carefully and confirm grade, thread style, and finish |
| Sanitary hose and ferrule connection | Hose transfer service and movable equipment | Strong if fitted with matching ferrules and couplings | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components starts with a focused review of size, material, finish, and pressure. This guide supports you match size, material, and finish to your process needs. Use the metrics and checks below to reduce downtime and ensure hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a key part of sanitary fitting specification. For routine food and beverage lines, 304 covers strength and cleanability needs. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications need reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks avoid costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Best Practices For Installing And Maintaining Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is essential. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Keeping detailed records of materials, finishes, and maintenance is important for traceability and audits.
Correct assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine sanitary maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Common issue troubleshooting
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can create uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches may be polished out and electropolished to restore the required Ra level. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Recordkeeping and documentation
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records help with regulatory compliance and expedite troubleshooting efforts.
| Service Task | Timing | Primary Action | Service Notes |
|---|---|---|---|
| Clamp torque check | After installation and on a monthly schedule | Verify with a calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket inspection and replacement | At scheduled intervals or whenever defects appear | Inspect for cuts, hardening, extrusion | Replace with matching material and durometer |
| Ra and surface condition check | Quarterly or after welding | Measure Ra, inspect visually | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and annually | Check for undercut, porosity, discoloration, and profile | Rework and polish fittings when defects appear |
| CIP and SIP validation | Each process cycle | Monitor time, temperature, concentration | Document results for validation and regulatory review |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to gauge market pricing and common stocking sizes. Prices reflect typical catalog entries and provide realistic budgets for procurement.
| Product | Size | Material Grade | Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | 304 | Standard finish | 3.91 USD |
| Two-piece single-pin clamp | 1″ | Type 304 stainless steel | Standard | Approx. $4.91 |
| Two-piece single-pin clamp | Two-inch size | 304 | Standard | $5.99 |
| Two-piece single-pin clamp | 2.5″ | 304 stainless | Standard finish | 6.93 USD |
| Two-piece single-pin clamp | 3″ | 304 stainless | Standard catalog finish | Approx. $7.54 |
| Two-piece single-pin sanitary clamp | 4″ | 304 stainless | Standard catalog finish | 9.16 USD |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 316L | 32RA internal and external finish | $4.24 |
| TC sanitary ferrule | 2″ size, 1.125″ overall length | 304 | 32RA ID and OD | Approx. $4.06 |
| Ferrule TC | Three-inch size | 316L stainless | 32RA internal and external finish | 6.15 USD |
| High-pressure sanitary clamp | One-and-a-half-inch size | Type 316 stainless steel | Polished | 12.93 USD |
| High-pressure double-bolt clamp | Two-inch size | 316 | Polished sanitary finish | Approx. $14.62 |
| High-pressure sanitary clamp | 3 inch | 316 | Polished | 20.26 USD |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are necessary for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This reduces contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, consider the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs offer competitive pricing for two-piece clamps, ferrules, and high-pressure options. This allows for balanced cost and reliability in procurement decisions. When searching for where to buy sanitary fittings, focus on reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources minimize downtime. This preserves product quality in hygienic processing environments.
